Lighting Rack 8 power

(Code: 1000010)
395.00
Add to cart

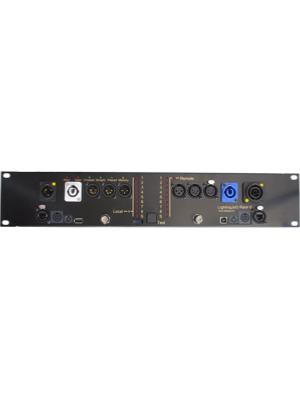

Lighting Rack 8 powerLightingJoG Rack 8 power
Features:
There are 2 rows of 9 LED's corresponding to each of the possible connector pins and one for the screen (or ground) connection. As each pin is activated, the LED's indicate all connections associated with that pin,so that short, open and crossed circuits can be easily found. The LED's also show the possibility of high resistance or leakage connections. 2 LED's indicate a good digital network connection, either Straight through, or Crossed over.
Connectors:
Powercon in and out
Truecon in and out
3, 4 & 5 Pole XLR Male & Female
DIN 3, 5 (180o) & 8 Pole
MINI DIN 4 Pole
BNC 50/75W / HD SDI
RJ45, Ethercon
USB A & B
Memory:
There are 6 LED's indicating the state of the MEMORY option.
If the MEMORY LED is on, then LightingJoG Rack 8 power automatically scans all the connections and compares against information held with just one press of the test button.
MEMORY works in single and double ended test modes..
INTERMITTENT fault detection uses the memory to continuously test the cable until a fault is found.
Test Modes:
Double ended - both ends of the cable under test are plugged into the LightingJoG Rack 8 power
Single ended - one end of the cable under test is plugged into LightingJoG Rack 8 powewr the other into another LightingJoG Rack 8 power or any compatible AudioJoG tester
Specification, Double {Single} ended:
Continuity and Short Circuits, less than 255K {75K} ohms
Open Circuits (end to end and between connected pins), greater than 255K {75K} ohms
Less than 2 {5} second test time
L 75mm W 483mm (19) D 88mm (2U).
Requires 9V dc power supply(supplied).

Click to download Manual
