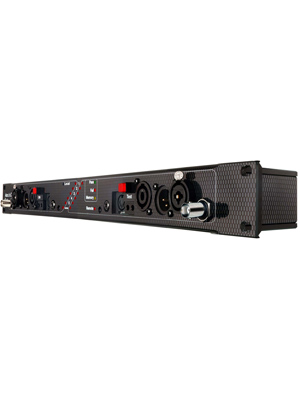

AudioJoG RackAudioJoG Rack

There are 2 rows of 6 LED's corresponding to each ofthe possible connector pins and one for the screen (or ground) connection. Aseach pin is activated, the LED's indicate all connections associated with thatpin, so that short, open and crossed circuits can be easily found. The LED'salso show the possibility of high resistance or leakage connections.
3 Pole XLR Maleand Female
6.35mm Jack,stereo or mono
Single or Twin4.4mm Bantam, stereo or mono
3.5mm Jack,stereo or mono
4 Pole Speakon (TM)
DIN 180o 3 & 5 Pole
RCA Phono
There are 3 LED's indicating the state of the MEMORYoption.
If the MEMORY LED is on, then AudioJoG Rackautomatically scans all the connections and compares against information heldwith just one press of the test button.
Test Modes:
DOUBLE ENDED - both ends of the cable under test areplugged into AudioJoG Rack
SINGLE ENDED - one end of the cable under test isplugged into AudioJoG Rack the other into another AudioJoG Rack or the smallhand held AudioJoG Pro (not the current range of Pro3,Pro 5 or Pro8s).

Specification,Double {Single} ended:
Continuityand Short Circuits, less than 255K {75K} ohms
OpenCircuits (end to end and between connected pins), greater than 255K {75K} ohms
Lessthan 2 {5} second test time
L83mm W 483mm (19") D 45mm (1U)
Requires 9V dc power supply (supplied).
